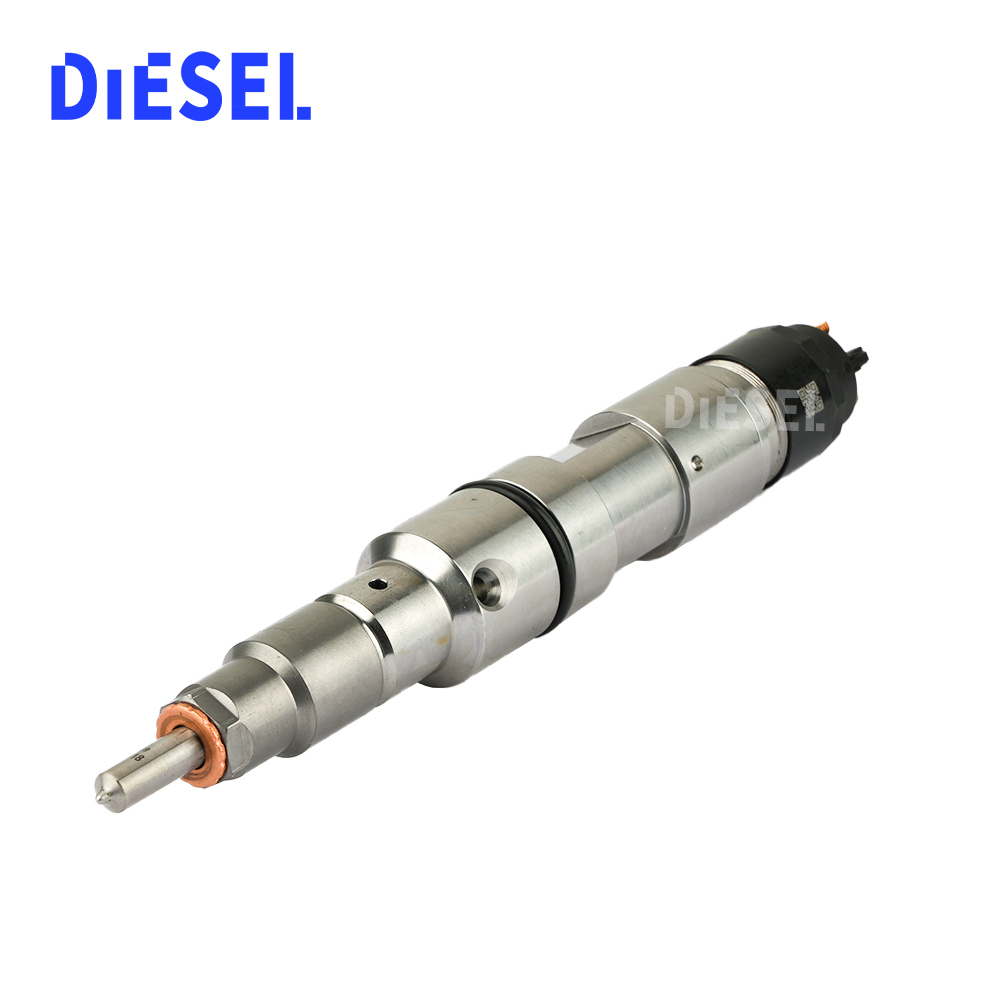

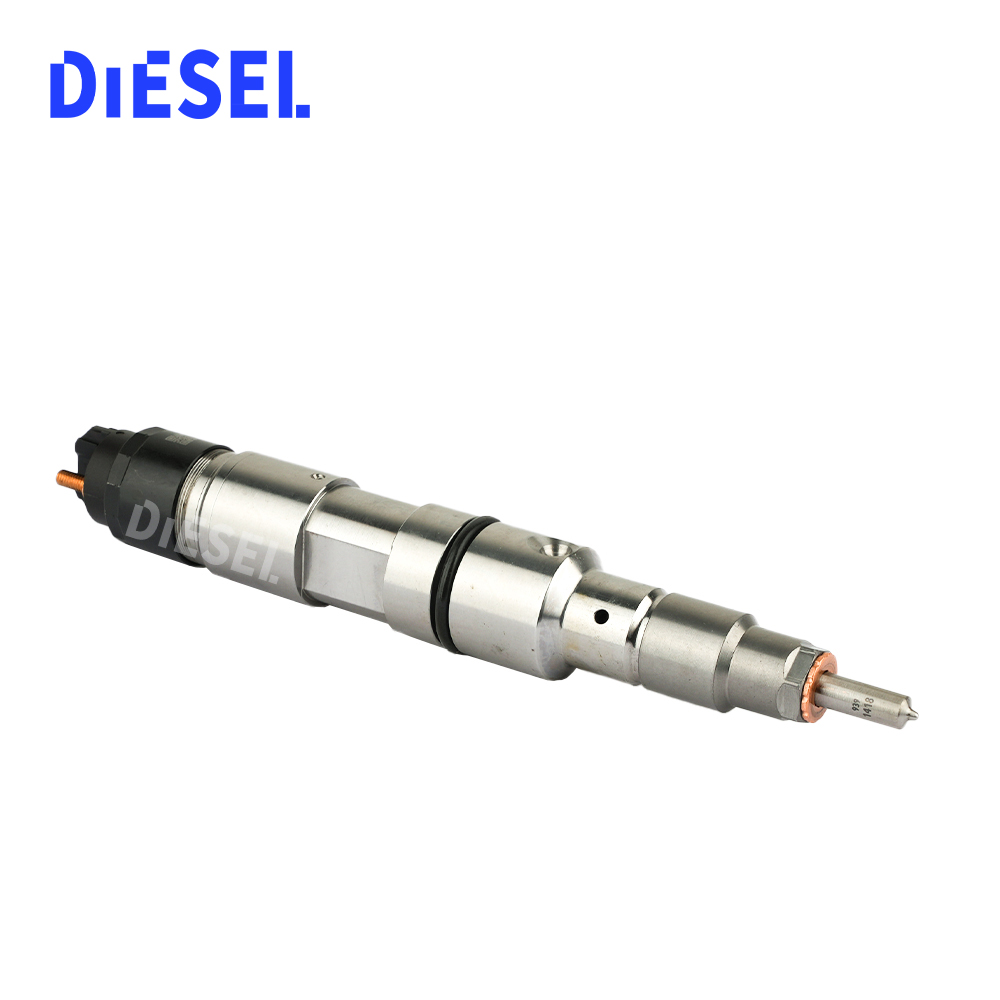

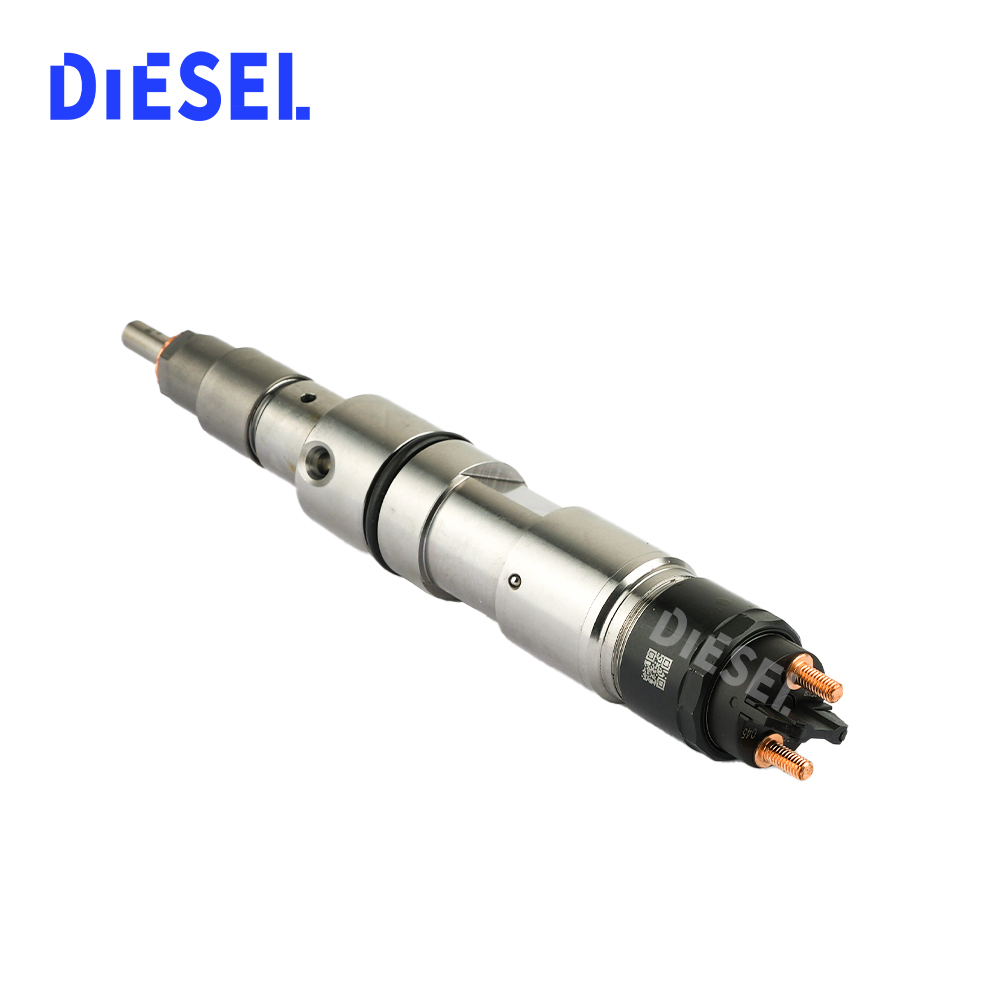

1. 0445120044 Diesel Injection Introduction

1.1. 0445120044 Diesel Injection Basic Information

Title	Common Rail 0445120044  Diesel Injection China Made New
SKU 1	G1W20445120044
SKU 2	G2W20445120044
SKU 3	W20000B2B120044



1.2. 0445120044 Diesel Injection Common Information

• Diesel Injection  Exchange Information

Diesel Injection Part Number	Compatible Number	Re-manufactured Part Number
0445120044	0445120024	0 986 435 527
	/



• Diesel Injection Application Information

Diesel Injection Part Number	Car Model
0445120044	51 10100 6049	/	/	/	/	/
0445120024	51 10100 6016	51 10100 6027	51 10100 6049	51 10100 6043	/	/
0 986 435 527	51 10100 4043	51 10100 6043	51 10100 6027	51 10100 6049	51 10100 6016	51 10100 9049



• Diesel Injection Matching Information

Vehicle brand	Series	Car Model	Engine Model	Production date	Power KW	Horse power	Emission Standards	Manufacturer	Emissions(L)	Cylinder	Power Source V
For MAN	TGA 18 t	TGA 18.480 F, FA	D 2876 LF12	2002/10-2006/09	353	480	/	/	12.8	6	24
For MAN	TGA 18 t	TGA 18.480 FC, FK, FL	D 2876 LF12	2003/07-2006/09	353	480	/	/	12.8	6	24
For MAN	TGA 18 t	TGA 18.530 F, FL	D 2876 LF13	2002/11-2004/09	390	530	/	/	12.8	6	24
For MAN	TGA 18 t	TGA 18.530 FC, FK, FL	D 2876 LF13	2002/10-2006/09	390	530	/	/	12.8	6	24
For MAN	TGA 26 t	TGA 26.480 DA	D 2876 LF12	2002/09-2006/09	353	480	Euro 3	/	12.8	6	24
For MAN	TGA 26 t	TGA 26.480 FD	D 2876 LF12	2003/06-2006/09	353	480	Euro 3	/	12.8	6	24
For MAN	TGA 26 t	TGA 26.480 FN, FP, FV	D 2876 LF12	2003/05-2006/09	353	480	Euro 3	/	12.8	6	24
For MAN	TGA 26 t	TGA 26.480 FN, FP, FV	D 2876 LF12	2003/07-2005/06	353	480	Euro 3	/	12.8	6	24
For MAN	TGA 26 t	TGA 26.530 DA	D 2876 LF13	2004/05-2004/09	390	530	Euro 3	/	12.8	6	24
For MAN	TGA 26 t	TGA 26.530 FD	D 2876 LF13	2002/10-2006/09	390	530	Euro 3	/	12.8	6	24
For MAN	TGA 26 t	TGA 26.530 FN, FP, FV	D 2876 LF13	2002/09-2005/06	390	530	Euro 3	/	12.8	6	24
For MAN	TGA 26 t	TGA 26.530 FN, FP, FV	D 2876 LF13	2002/11-2006/09	390	530	Euro 3	/	12.8	6	24
For MAN	TGA 32 t	TGA 32.480 FFD	D 2876 LF12	2004/05-2006/01	353	480	Euro 3	/	12.8	6	24
For MAN	TGA 32 t	TGA 32.530 DA	D 2876 LF13	2004/05-2004/09	390	530	Euro 3	/	12.8	6	24
For MAN	TGA 33 t	TGA 33.480 DA	D 2876 LF12	2002/10-2006/09	353	480	Euro 4	/	12.8	6	24
For MAN	TGA 33 t	TGA 33.480 FD-WW	D 2876 LF12	2003/06-2009/03	353	480	Euro 4	/	12.8	6	24
For MAN	TGA 33 t	TGA 33.480 FD-WW	D 2876 LF25	2006/07-2009/03	353	480	Euro 4	/	12.8	6	24
For MAN	TGA 33 t	TGA 33.480 FDA-WW	D 2876 LF12	2003/08-2009/03	352	480	Euro 4	/	12.8	6	24
For MAN	TGA 33 t	TGA 33.530 DF	D 2876 LF13	2002/10-2006/09	390	530	Euro 4	/	12.8	6	24
For MAN	TGA 35 t	TGA 35.310 FFD	D 2876 LF13	2004/06-2006/03	390	530	Euro 4	/	12.8	6	24
For MAN	TGA 35 t	TGA 35.310 FFD	D 2876 LF13	2004/07-2004/10	390	530	Euro 4	/	12.8	6	24
For MAN	TGA 35 t	TGA 35.310 FFD	D 2876 LF13	2004/07-2004/09	390	530	Euro 4	/	12.8	6	24
For MAN	TGA 35 t	TGA 35.310 FFD	D 2876 LF13	2004/08-2006/03	390	530	Euro 4	/	12.8	6	24
For MAN	TGA 35 t	TGA 35.480 FFD	D 2876 LF12	2003/07-2006/03	352	480	Euro 4	/	12.8	6	24
For MAN	TGA 35 t	TGA 35.480 FFD	D 2876 LF12	2003/09-2006/09	353	480	Euro 4	/	12.8	6	24
For MAN	TGA 35 t	TGA 35.530 FFD	D 2876 LF13	2004/06-2006/03	390	530	Euro 4	/	12.8	6	24
For MAN	TGA 35 t	TGA 35.530 FFD	D 2876 LF13	2004/07-2004/10	390	530	Euro 4	/	12.8	6	24
For MAN	TGA 35 t	TGA 35.530 FFD	D 2876 LF13	2004/07-2004/09	390	530	Euro 4	/	12.8	6	24
For MAN	TGA 35 t	TGA 35.530 FFD	D 2876 LF13	2004/08-2006/03	390	530	Euro 4	/	12.8	6	24
For MAN	TGA 37 t	TGA 37.480 VF	D 2876 LF12	2004/08-2006/09	353	480	Euro 4	/	12.8	6	24
For MAN	TGA 37 t	TGA 37.530 VF	D 2876 LF13	2003/06-2006/09	390	530	Euro 4	/	12.8	6	24
For MAN	TGA 40 t	TGA 40.480 DF	D 2876 LF12	2004/10-2006/03	353	480	Euro 4	/	12.8	6	24
For MAN	TGA 40 t	TGA 40.480 FD-WW	D 2876 LF12	2004/11-2009/03	353	480	Euro 4	/	12.8	6	24
For MAN	TGA 40 t	TGA 40.480 FD-WW	D 2876 LF25	2006/07-2009/03	353	480	Euro 4	/	12.8	6	24
For MAN	TGA 41 t	TGA 41.480 FFD	D 2876 LF12	2003/05-2006/09	353	480	Euro 4	/	12.8	6	24
For MAN	TGA 41 t	TGA 41.480 FFD-WW	D 2876 LF12	2003/06-2009/03	353	480	Euro 4	/	12.8	6	24
For MAN	TGA 41 t	TGA 41.480 FFD-WW	D 2876 LF25	2006/07-2009/03	353	480	Euro 4	/	12.8	6	24
For MAN	TGA 41 t	TGA 41.530 FFD	D 2876 LF13	2003/07-2004/09	390	530	Euro 4	/	12.8	6	24
For MAN	TGA 41 t	TGA 41.530 FFD	D 2876 LF13	2004/05-2004/09	390	530	Euro 4	/	12.8	6	24



1.3. 0445120044 Diesel Injection Parameter

Adaptation System: Common Rail System

Diesel Injection Series: 120 Series

Parameter Performance: CRIN2-16

Matching Accessories：Gasket F 00R J02 175（7.73*14.36*1.49）

Diesel Injection Type: Electromagnetic Diesel Injection

Support System Maximum Pressure: 1600

Vehicle Configuration Information: /

Diesel Injection Size: 21.5cm*4 cm *4 cm

Diesel Injection Net Weight: 0.55kg

Diesel Injection Gross Weight: 0.6kg

Diesel Injection Quality: China Made New

Diesel Injection Package Size: 28cm*7 cm *7 cm

Diesel Injection Type: Common Rail Diesel Injection

Diesel Injection MOQ: 4 Pieces



2. 0445120044 Diesel Injection Customized Service

• Diesel Injection Customized Service Coverage: Meet the customized needs of OEM manufacturers for shell lettering, logo engraving, diesel injection internal packaging, diesel injection external packaging and labels customized, etc.

No.	1	2	3	4

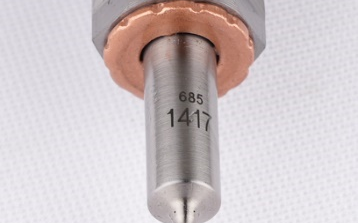

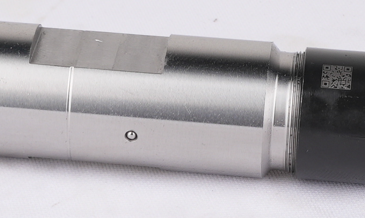

Name	Diesel Injection Nozzle Engraving	Diesel Injection Housing Lettering and QR Code	Diesel Injection Solenoid Valve Lettering	Diesel Injection Box And Label



• Diesel Injection Customized Service Requirements：
• The purchase of customized diesel injections are not less than 10
• The purchase of customized diesel injection packages are no less than 1000

When the customized products involve the need of specify logo, the OEM manufacturer is asked to provide trademark authorization and the sample of logo image file.

Once the customized diesel injection is sold, it cannot be returned or exchanged if there is no quality problems.



3. 0445120044 Diesel Injection Purchase and Delivery

3.1. 0445120044 Diesel Injection Purchase Payment Term

Payment Terms： T/T, PayPal, Alipay, WeChat

• Please contact our salesmen for specific payment



3.2. 0445120044 Diesel Injection Shipping Ways

Destination in China Areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.

Destinations Out of China’s Areas： DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.



3.3. 0445120044 Diesel Injection Lead time

Lead Time：Send out within 3 – 7 working days after receiving payment（Except for special products and special cases）.



3.4. 0445120044 Diesel Injection Packing

Domestic Express Packaging：Usually wrapped in waterproof scotch tape.

International Express Packaging：Wrapped with waterproof yellow tape after wrapping the black protective film.

Pallet Shipping：Use fumigation free and recycling trays that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties for the outside, also, the products can be packaged according to customers’ requirements.

• The packing tray is made of plastic and can be recycled.
• Transparent tape, yellow tape, black wrapping protective film, white wrapping protective film are non-degradable materials, please dispose of them properly.
• Minors are prohibited from using transparent tape, yellow tape, black wrapping protective film, and white wrapping protective film to avoid personal injury.

No.	Name	Image	Description
1	Domestic Express Packaging		Wrapped by transparent tape
2	International Express Packaging		Wrapped with yellow tape after wrapping black protective film
3	Pallet Shipping		Use pallet that meet export requirements, and use white wrapping protective film to wrap and bind with cable ties



3.5. 0445120044 Diesel Injection Logistic  s Time for Destination Out of China’s Areas

DHL Logistics Time：

Country or Region of Departure	Hong Kong, China	Other Countries or Regions of Asia	Australia and New Zealand	Europe	America	Other Countries
China’s Mainland	7 Days	7 Days	8 Days	8 Days	8-12 Days	7-10 Days

UPS Logistics Time：Country or Region of Departure：China’s Mainland

Country of Destination	Estimated Arrival Time	Country of Destination	Estimated Arrival Time	Country of Destination	Estimated Arrival Time
Japan	3 Days	UK	5-7Days	Egypt	5-7 Days
Turkey	5-7 Days	Singapore	3 Days	Switzerland	5-7 Days
Bahrain	5-7 Days	Latvia	7-10 Days	New Zealand	7-10 Days
Sri Lanka	5-7 Days	Thailand	3 Days	Austria	5-7 Days
Romania	5-7 Days	Vietnam	3-5 Days	Estonia	5-7 Days
Malaysia	3-5 Days	Israel	5-7 Days	Mexico	7-10 Days
France	5-7 Days	America	5-7 Days	United Arab Emirates	5-7 Days
Italy	5-7 Days	Netherlands	5-7 Days	Bengal	7-10 Days
Lebanon	5-7 Days	Philippine	3-5 Days	Greece	7-10 Days
South Korea	3 Days	Spain	5-7 Days	Myanmar	5-7 Days
Canada	5-7 Days	Germany	5-7 Days	Saudi Arabia	7-10 Days
Portugal	5-7 Days	Australia	5-7 Days	South Africa	7-10 Days
Denmark	5-7 Days	Belgium	5-7 Days	Ukraine	7-10 Days
India	7-10 Days	Qatar	7-10 Days	Poland	5-7 Days
Indonesia	3-5 Days	Morocco	7-10 Days	Pakistan	7-10 Days
Kuwait	7-10 Days	/	/	/	/

• The logistics time is for reference only and is subject to the actual arrival.
